 Arduino

 Arduino est la marque d'une plateforme de prototypage open-source qui permet aux utilisateurs de créer des objets électroniques interactifs à partir de cartes électroniques matériellement libres sur lesquelles se trouve un microcontrôleur (d'architecture Atmel AVR comme l'Atmega328p, et d'architecture ARM comme le Cortex-M3 pour l'Arduino Due).

Les schémas de ces cartes électroniques sont publiés en permit libre. Cependant, certaines composantes, comme le microcontrôleur standard exemple, ne sont pas sous permit libre.

Le microcontrôleur peut être programmé pour analyser et produire des signaux électriques, de manière à effectuer des tâches très diverses comme la domotique (le contrôle des appareils domestiques — éclairage, chauffage… ), le pilotage d'un robot, de l'informatique embarquée, and so forth

C'est une plateforme basée sur une interface entrée/fight basic. Il était destiné à l'origine principalement mais pas exclusivement à la programmation multimédia intelligent en vue de displays ou d'animations artistiques, ce qui explique en partie la descendance de child environnement de développement de Processing, lui-même inspiré de l'environnement de programmation Wiring (l'un pensé pour la creation d'applications impliquant des graphismes et l'autre pour pilotage de salles de scenes).

Arduino peut être utilisé pour construire des objets interactifs indépendants (prototypage rapide), ou bien peut être connecté à un ordinateur pour communiquer avec ses logiciels (ex. : Max/MSP, Usine Hollyhock, Pure Data, SuperCollider). En 2011, les adaptations vendues sont pré-assemblées. Des informations sont fournies pour ceux qui souhaitent constructing agent ou construire une carte Arduino eux-mêmes.

Le projet Arduino a reçu un titre honorifique à l'Ars Electronica 20061, dans la catégorie Digital Communities.



Arduino Software 1.0.5 (Windows)  Download here



Arduino Software 1.8.19 (Windows)  Download here

 Dec 23, 2021 - Arduino ( Freeware ) - Size : (111.87 MB)







 Arduino LM35

The LM35 temperature sensor is an analog temperature sensor manufactured by Texas Instruments. It is extremely popular in electronics because it is precise, inexpensive, very easy to use and extremely reliable.

The LM35 temperature sensor is able to measure temperatures ranging from -55°C to +150°C in its most precise version and with the appropriate mounting, enough to measure any temperature.

N.B. The consumer versions are capable of measuring temperatures between -40°C and +110°C.

The analog output of the sensor is proportional to the temperature. It suffices to measure the voltage at the output of the sensor to deduce the temperature. Each degree Celsius corresponds to a voltage of +10mV.

 Download Code LM35



Arduino DHT11

How the Arduino DHT11 sensor works

The DHT11 temperature sensor is board mounted and has a three-pin connector. The DHT11 is a digital sensor consisting of a thermistor and a capacitive humidity sensor. Besides low cost, DHT11 has the following features: 3.5-5V power supply, 0-50 degree temperature sensing with 2 degree accuracy, 20-95% humidity sensing with 2 degree accuracy by 5%.
DHT11 Sensor Wiring Arduino
DHT11 temperature and humidity sensor Arduino wiring

A thermistor is a thermal resistor whose resistance varies with temperature, i.e. an increase in temperature leads to a decrease in its resistance. Essentially, a thermistor is a resistance thermometer made from mixed transition metal oxides. It refers to measurement technology and can be used for automatic temperature measurement in various media.

A capacitive humidity sensor is a variable capacitance capacitor that contains conductive copper sheets coated with textolite. This capacitor is encapsulated in a sealed sheath on which is placed a layer of desiccant. When water particles touch this layer, its dielectric permittivity changes, which leads to a change in the capacitance of the capacitor.

Download code DHT11



 Arduino DHT22

This is very simple and small post but always simple and small things make smart and enterprise products. Any way it's my dream that i write a program from that i can check my room temperature and humidity instead of watching from small devices.

I am using DHT22 Temperature and Humidity sensor with Arduino UNO R3 and getting it's data from Arduino Serial Monitor. Before i go to next step i think i need to tell you some thing about DHT22. It's Humidity Range is 0-100% and Temperature range is -40 - 125°C that's why I prefer DHT22 as compared to DHT11.

 Download Arduino DHT22



 Arduino Ultrason

 The HC-SR04 detector uses ultrasound to determine the distance to an object. No matter the intensity of the light, the temperature or the type of material, the sensor can easily detect if there is an obstacle in front of it. However, it can be constrained on certain types of colors such as black (contrast), or even on materials such as textiles. Its field of vision is approximately 90° depending on the environment. If a pulse of more than 10µS is detected, then the sensor sends a series of 8 ultrasonic pulses of 40kHZ and waits for the signal to reflect. Then, with the speed of sound in mind, it performs a quick calculation to determine the distance.

 Download Code Ultrason

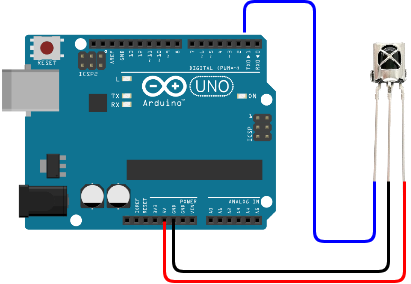

Arduino télécommande IR

 The IR receiver for remote controls is more than just a light sensor. It is an IR demodulator, the characteristics of which are as follows:

     output: idle = HIGH state, active = LOW state
     supply voltage: 2.7V ~ 5.5V
     wavelength: 940nm
     carrier frequency: 38kHz
     signal range: max. 12m

 Download Code Ir





Allumer une LED par Arduino

 Download Code Leds



Arduino flame sensor

 All heat sources (above 0K) emit infrared light. The KY-026 flame detection module for Arduino measures the intensity of infrared light emitted by fire over a wavelength range of 760 to 1100 nm. The module has digital and analog outputs and a potentiometer to adjust the sensitivity. Commonly used in fire detection systems.



Download Code Arduino flame sensor



 Arduino altitude pressure sensor BMP180

 You might wonder why anyone would need to measure atmospheric pressure. In fact, this is very useful for two reasons:

     The first is that it allows you to measure altitude. As you travel from sea level (or even below sea level) to high elevation, the air pressure decreases. This means that measuring the pressure makes it possible to determine our altitude... practical when you don't want to pay the price of a GPS module.
     Then, the atmospheric pressure helps to predict the weather. This is precisely what "Mr Météo" uses when he talks about pressure systems to make his forecasts.

Download code arduino altitude pressure sensor1

Download code arduino altitude pressure sensor2



 Arduino sound sensor

 The KY-038 sound sensor is a module consisting of an electret microphone and an LM393 comparator. It is sometimes called KY-037 or HXJ-17 (my copy has the number HW-484 on the back ...which is basically the name of a reed switch module!).

Download Arduino Code sound sensor



 Arduino Infrared Thermometer Sensor

 This is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for Arduino, or any microcontroller that can communicate with it through the I2C sound interface. There are two solder jumpers for the I2C interface that may or may not require soldering depending on your application, but won't do for most uses.

Download code Arduino Infrared Thermometer Sensor
